Fortinet FortiAP S322CR (End of Sale/Life)

ZERO

Fortinet FortiAP S322CR (End of Sale/Life)
Fortinet FortiAP S322CR (End of Sale/Life)
Fortinet FortiAP S322CR (End of Sale/Life)

Product information "Fortinet FortiAP S322CR (End of Sale/Life)"

Limited budget? - Request your attractive offer now

Please note that an order outside the DACH region must be authorised by the manufacturer and processing can therefore not be guaranteed.

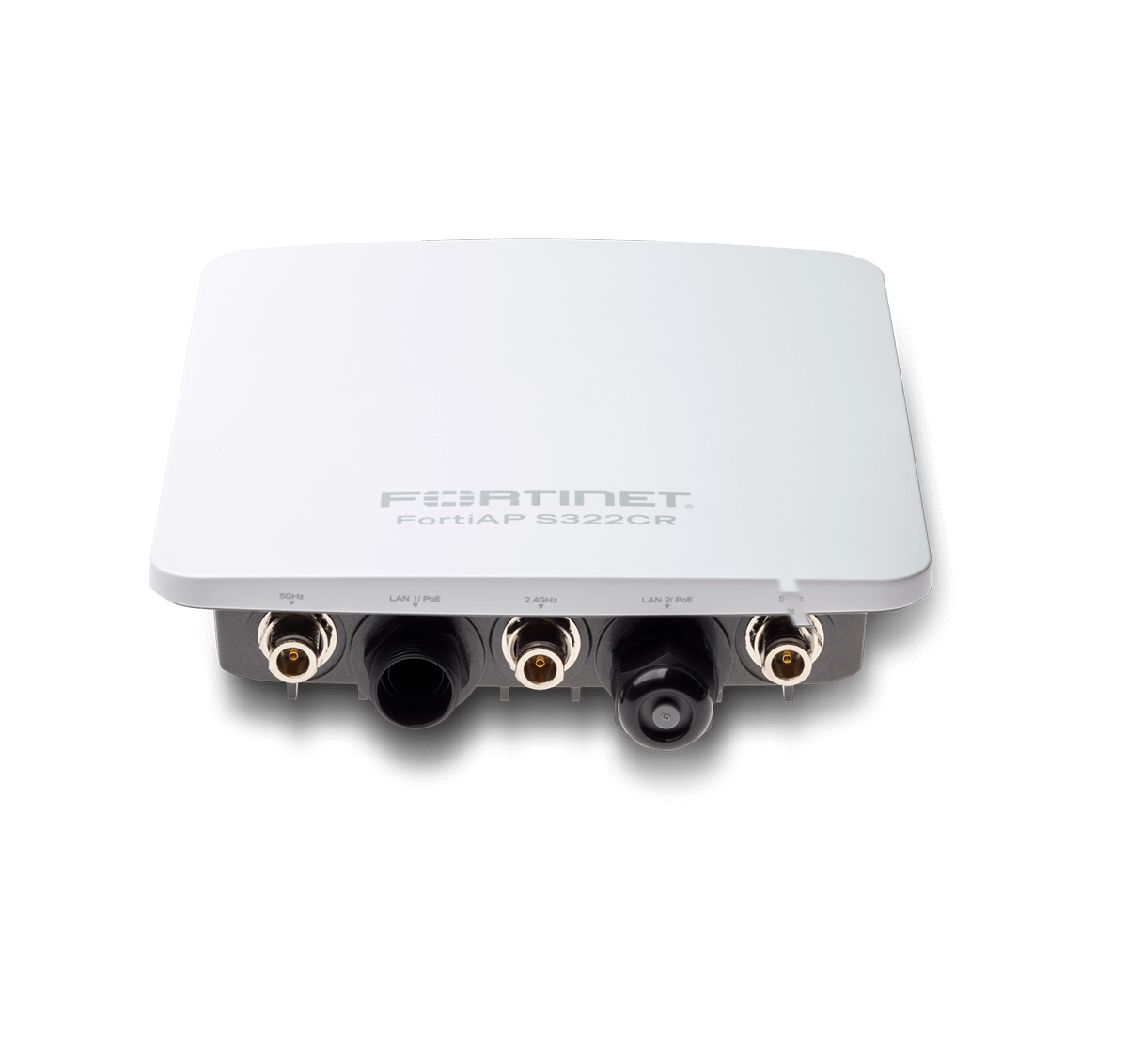

The FAP-S322CR is an outdoor 802.11ac Wave 1 access point. It delivers a power throughput of up to 1.3 GHz and supports a variety of external antennas that can be customised to your needs. The AP-S322CR has a second GE port, which allows other devices (such as IP cameras) to be connected to the network. The device has external antennas.

FortiAP basic functionsFortiAP live demoFortiAP videoFortiAP management overview

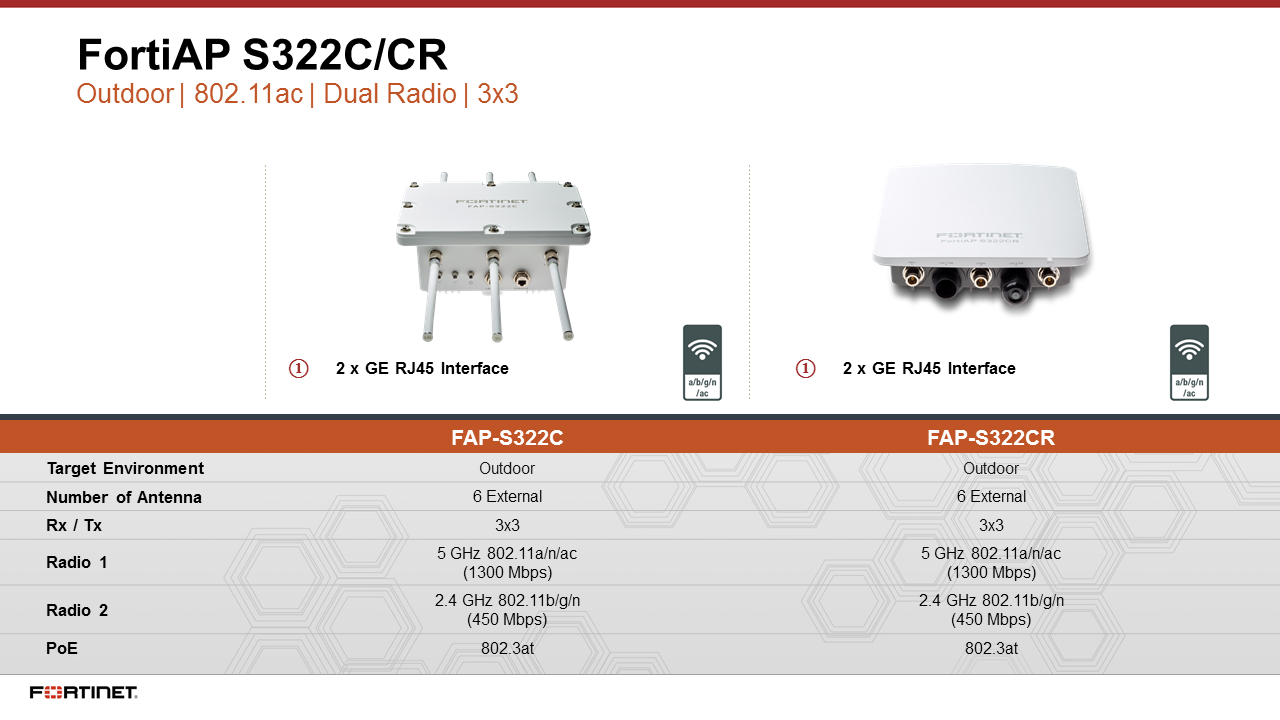

Fortinet FortiAP S322CR (End of Sale/Life) Product information

Antennas: 6 External
Assembly: Mast, Wall
Environment: Outdoor
Frequency: 2,4 GHz & 5 GHz
Maximum Throughput 5 GHz: 1,3 Gbps
Radios: 1
802.11: a, b, g, n, ac
MIMO: 3x3:3
Compare product
Fortinet Access Point (FortiAP) 231G Hardware Vorderseite
Fortinet Access Point (FortiAP) 233G Hardware Vorderseite
Fortinet Access Point (FortiAP) 431G Hardware Vorderseite
Fortinet Access Point (FortiAP) 433G Hardware Vorderseite inklusive Antennen
Fortinet Access Point (FortiAP) U231F Hardware Vorderseite
Fortinet Access Point (FortiAP) 221E Hardware Vorderseite
Fortinet Access Point (FortiAP) S223E Hardware Vorderseite
Fortinet Access Point (FortiAP) 231F Hardware Vorderseite
Fortinet Access Point (FortiAP) 234F Hardware Vorderseite
Fortinet Access Point (FortiAP) 23JF Hardware Vorderseite
Fortinet Access Point (FortiAP) 241K Hardware Vorderseite
Fortinet Access Point (FortiAP) 243K Hardware Vorderseite
Fortinet Access Point (FortiAP) 431F Hardware Vorderseite
Fortinet Access Point (FortiAP) 433F Hardware Vorderseite
Fortinet Access Point (FortiAP) 431F Hardware Vorderseite
Fortinet Access Point (FortiAP) U432F Hardware Vorderseite
Fortinet Access Point (FortiAP) U433F Hardware Vorderseite
Name
Fortinet FortiAP S322CR (End of Sale/Life)
Fortinet FortiAP 231G
Fortinet FortiAP 233G
Fortinet FortiAP 234G
Fortinet FortiAP 431G
Fortinet FortiAP 432G
Fortinet FortiAP 433G
Fortinet FortiAP 441K
Fortinet FortiAP 443K
Fortinet FortiAP 831F
Fortinet FortiAP U231F
Fortinet FortiAP-221E Wireless Access Point
Fortinet FortiAP-223E
Fortinet FortiAP-231F Wireless Access Point (End of Sale/Life)
Fortinet FortiAP-231K
Fortinet FortiAP-234F
Fortinet FortiAP-23JF
Fortinet FortiAP-23JK
Fortinet FortiAP-241K
Fortinet FortiAP-243K
Fortinet FortiAP-431F
Fortinet FortiAP-433F
Fortinet FortiAP-U431F
Fortinet FortiAP-U432F
Fortinet FortiAP-U433F
Link
Rating
Description
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "PB.ForitAP-234G" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "pb.forti.ap432G" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "pb.forti.ap441K" | trans | raw }}
{{ "pb.forti.ap443K" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
Price

‏2,185.00 €*

‏368.93 €*

‏463.53 €*

‏1,135.17 €*

‏1,267.60 €*

‏2,459.53 €*

‏1,390.58 €*

‏1,627.07 €*

‏1,731.13 €*

‏974.35 €*

‏340.55 €*

‏208.11 €*

‏227.03 €*

‏375.29 €*

‏463.53 €*

‏927.05 €*

‏387.85 €*

‏605.42 €*

‏945.97 €*

‏1,040.57 €*

‏624.34 €*

‏690.56 €*

‏595.96 €*

‏1,466.26 €*

‏643.26 €*

Antennas
6 External
4 Internal
2 Extern + 2 RPSMA Connector
10 Intern
8 Internal
8 Extern + 1 BLE
4 Extern + 4 RPSMA Connector
11 Intern
11 Extern
12 Internal + 1 BLE
4 Internal + 1 BLE
4 Internal + 1 BLE
4 External
3 Internal
-
3 External + 1 BLE external
5 Internal + 1 BLE
-
6 Internal + 1 BLE
6 External RP-SMA + 1 BLE
5 Internal + 1 BLE
5 External + 1 BLE
10 Internal + 1 BLE
11 Extern
10 External + 1 BLE
Assembly
Mast; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Mast; Wall
Ceiling ; T-rail ; Wall
-
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; Mast; Wall
Mast; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Environment
Outdoor
Indoor
Indoor
Outdoor
Indoor
Outdoor
Indoor
Indoor
Indoor
Indoor
Indoor
Indoor
Indoor
Indoor
Indoor
Outdoor
Indoor
-
Indoor
Indoor
Indoor
Indoor
Indoor
Outdoor
Indoor
Frequency
2,4 GHz & 5 GHz
2,4 GHz, 5 GHz & 6 GHz; 20 / 40 / 80 / 160 MHz
2,4 GHz, 5 GHz & 6 GHz
-
2,4 GHz, 5 GHz & 6 GHz
-
2,4 GHz, 5 GHz & 6 GHz
-
-
2,4 GHz & 5 GHz
2,4 GHz & 5 GHz
2,4 GHz & 5 GHz
2,4 GHz & 5 GHz
2,4 GHz; 2,4 GHz & 5 GHz; 5 GHz; 20 / 40 / 80 MHz
2,4 GHz, 5 GHz & 6 GHz
2,4 GHz; 5 GHz
2,4 GHz; 5 GHz
-
-
-
2,4 GHz & 5 GHz
2,4 GHz & 5 GHz
2,4 GHz & 5 GHz
2,4 GHz; 5 GHz
2,4 GHz & 5 GHz
Maximum Throughput 5 GHz
1,3 Gbps
1,2 Gbps
1,2 Gbps
1,201 Mbps
2,47 Gbps
2475 Mbps
2,47 Gbps
8.648 Gbps
8.648 Gbps
4,8 Gbps
1,2 Gbps
867 Mbps
867 Mbps
1,2 Gbps
2.882 Gbps
1,2 Gbps
1,2 Gbps
2.882 Gbps
4.324 Gbps
4.324 Gbps
2,47 Gbps
2,47 Gbps
4,8 Gbps
4,8 Gbps
4,8 Gbps
Radios
1
3 + 1 BLE
3 + 1 BLE
3 + 1 BLE
3 + 1 BLE
3 + 1 BLE
3 + 1 BLE
4 + 1 BLE
4 + 1 BLE
3 + 1 BLE
3 + 1 BLE
2
2
3 + 1 BLE
3 + 1 BLE
3 + 1 BLE
3 + 1 BLE
3 + 1 BLE
4 + 1 BLE
4 + 1 BLE
2
2
2
3 + 1 BLE
2
802.11
a; b; g; n; ac
a; b; g; n; ac; ax
a; b; g; n; ac; ax
-
a; b; g; n; ac; ax
e; g; h; i; k; n; r; v; a; b; ac; ax
a; b; g; n; ac; ax
-
-
a; b; g; n; ac; ax
a; b; g; n; ac; ax
a; b; g; n; ac
a; b; g; n; ac
a; b; g; n; ac; ax
-
a; b; g; n; ac; ac W2; ax
a; b; g; n; ac; ac W2; ax
-
-
-
a; b; g; n; ac; ax
a; b; g; n; ac; ax
a; b; g; n; ac; ax
a; b; g; n; ac; ac W2; ax
a; b; g; n; ac; ax
MIMO
3x3:3
2x2:2 MU MIMO
2x2:2 MU MIMO
-
4x4:4 MU MIMO
-
4x4:4 MU MIMO
-
-
8x8:8 MU MIMO
2x2:2
2x2:2
2x2:2
2x2:2 MU MIMO
-
2x2:2 MU MIMO
2x2:2 MU MIMO
-
-
-
4x4:4 MU MIMO
4x4:4 MU MIMO
4x4:4 MU MIMO
4x4:4 MU MIMO
4x4:4 MU MIMO
Abmessungen Breite x Tiefe x Höhe
-
182 x 182 x 54 mm
-
-
-
-
-
-
-
-
-
-
-
153 x 153 x 53 mm
175 x 175 x 56 mm
-
-
180 x 120 x 40 mm
-
-
-
-
-
-
-
Anzahl Netzteile inklusive / maximal
-
0 / 2
-
-
-
-
-
-
-
-
-
-
-
0 / 2
-
-
-
-
-
-
-
-
-
-
-
Gewicht
-
0,8 kg
-
-
-
-
-
-
-
-
-
-
-
0,54 kg
-
-
-
-
-
-
-
-
-
-
-
Max. Datenrate 6 Ghz
-
2,4 Gbps
2,4 Gbps
2401 Mbps
4,8 Gbps
4804 Mbps
4,8 Gbps
11.530 Gbps
11.530 Gbps
-
-
-
-
-
5.765 Gbps
-
-
5.765 Gbps
5765 Mb/s
5765 Mb/s
-
-
-
-
-
Maximum Throughput 2.4 GHz
-
574 Mbps
574 Mbps
574 Mbps
1,18 Gbps
1182 Mbps
1,18 Gbps
1,18 Gbps
1,18 Gbps
1,147 Gbps
574 Mbps
400 Mbps
400 Mbps
574 Mbps
688 Mbps
574 Mbps
574 Mbps
688 Mbps
688 Mbps
688 Mbps
1,18 Gbps
1,18 Gbps
-
4,8 Gbps
-
Number of 2.5 GE RJ45 Ports
-
1
-
-
-
-
-
-
-
-
-
-
-
1
-
-
-
-
-
-
-
-
-
-
-
Power supply
-
PoE
-
PoE
-
-
-
PoE
PoE
-
-
-
-
PoE+
PoE
-
-
-
-
-
-
-
-
-
-
Stromversorgung
-
Extern
-
-
-
-
-
-
-
-
-
-
-
Extern
-
-
-
-
PoE
PoE
-
-
-
-
-
802.1
-
-
-
-
-
X
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
802.3
-
-
-
-
-
ad; at; az; bt
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Number of GE RJ45 Ports
-
-
-
-
-
-
-
-
-
-
-
-
-
2
-
-
-
-
-
-
-
-
-
-
-
