Ruckus - Seamless WiFi

New user demands and technological advances are putting increasing pressure on campus networks, requiring them to scale to support more devices and deliver more bandwidth. Rapid growth in wireless traffic, accelerated by the adoption of 802.11ac and 802.11ax Wi-Fi, is driving the migration from 1GbE to multigigabit in access and increasing the need for faster networks in the aggregation and core.

Companies are growing rapidly, requiring always-on, reliable, high-speed connections to the cloud and leading to downsizing of data centres for which most large chassis/routers are oversized and too complex and expensive to deploy.

Traditional enterprise networks have been designed to use chassis systems to provide reliable, fast and scalable routing capabilities for the campus. With recent advances in network processors, these capabilities can be packaged into a more flexible, stackable switch design. This opens the door to new network architectures where the core can be distributed across the campus and ports and switching capacity can be deployed directly where they are needed.

ICX7850-32Q: 1 x Konsole RJ-45 Management, 1 x 1000Base-T RJ-45 Management, 32 x 100Gbit/40Gbit LAN QSFP28, 1 x Konsole (USB) Type C

ICX7850-48F: 1 x Konsole RJ-45 Management, 1 x 1000Base-T RJ-45 Management, 1 x Konsole (USB) Type C, 8 x 100Gbit/40Gbit LAN QSFP28, 40 x 1/10/25Gbit LAN SFP28

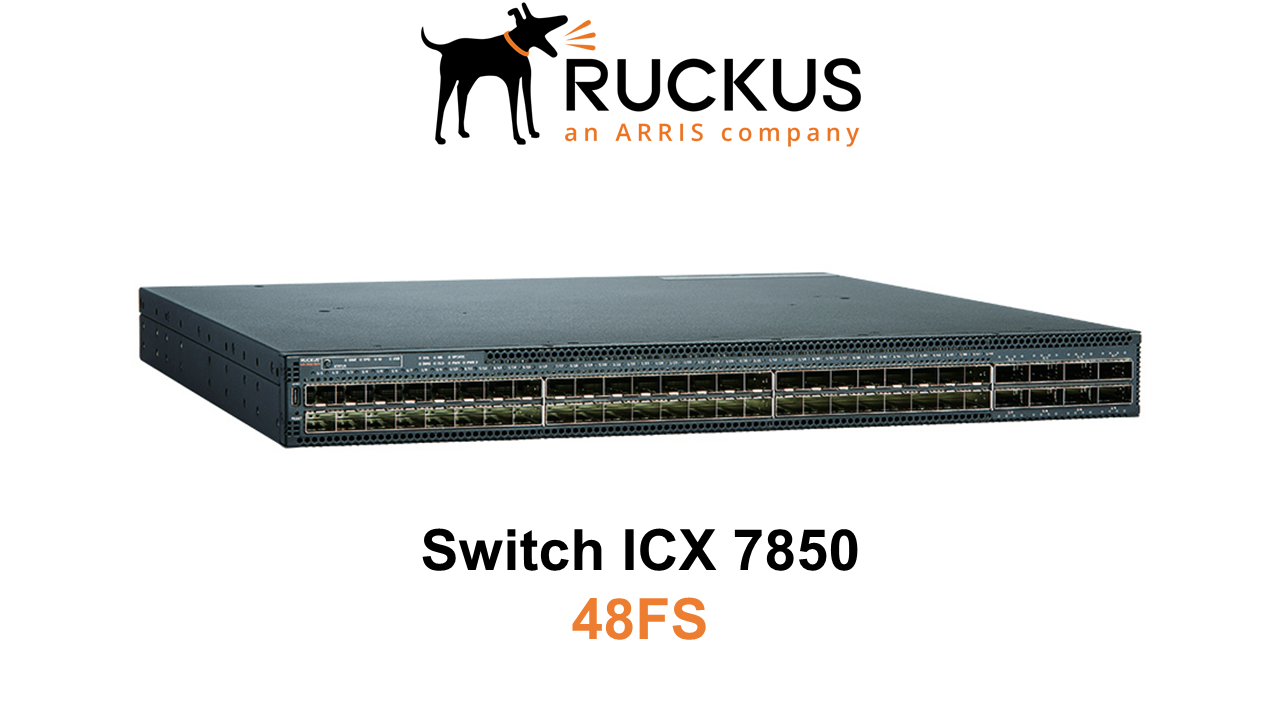

ICX7850-48FS: 48 x 1/10 GbE SFP+ Ports mit 128/256 bit MACsec und LRM support, 8 x 40/100 Gbps QSFP28 Ports supporting native 40 GbE oder 100 GbE, oder breakout* to, 4x10 GbE oder 4x25 GbE, up to 8 of the QSFP28 Ports as stacking Ports, 2x hot-swappable load sharing power supplies and 5x hot-swappable fan assemblies with reversible

Ruckus understands that each network is unique and requires a different level of technical support to meet the customer's business needs. Ruckus provides a single support contact for ICX switching products, regardless of the channel through which they were purchased. Organizations facing the challenges of maintaining large or complex network environments gain immediate access to Ruckus expertise and resources to accelerate problem resolution, increase uptime and improve overall efficiency.

Remote Technical Support (RMT)

Provides 24/7 access to the TAC, software updates and online self-service tools. RMT support is available worldwide and around the clock, including holidays. This is a good option for customers who are satisfied with the replacement parts coverage under the Ruckus Assurance Limited Lifetime Warranty.

Next-business-day Parts (NDP)

Provides a next-business-day response for parts replacements from the time Ruckus has determined a replacement is needed and confirmed shipment with the customer. Physical installation of the replacement part and return of the defective product must be performed by the customer. NDP is available in most major metropolitan areas worldwide and is available to the customer on business days 9×5 local time. For ICX switches, this support is required to provide next-business-day replacement of removable optics and LEDs not covered by the Ruckus Assurance Limited Lifetime Warranty.

Overview

Ruckus support services help improve performance and reduce downtime with fast, expert technical support and flexible hardware coverage on demand. Ruckus Support TAC experts are available 24 hours a day, 365 days a year. The Ruckus Support Portal provides access to our software downloads, knowledge library and self-help tools.

The Ruckus Diagnostic Dashboard (RDD) is available free of charge to all Ruckus Support customers. The RDD helps automate troubleshooting and enables proactive support.

Ruckus provides an extensive portfolio of online training and educational content free of charge. Instructor-led courses are also available.

Benefits

• Resolves issues faster by identifying errors sooner.
• Reduces risk by having access to technical experts and tools 24 hours, 365 days a year.
• Get replacements for defective parts with a variation of SLAs to meet your needs.
• Increase operational efficiency to make network managers, administrators and engineers more productive.
• Additional engagements tailored to specific customer needs are available.

Ruckus understands that each network is unique and requires a different level of technical support to meet the customer's business needs. Ruckus provides a single support contact for ICX switching products, regardless of the channel through which they were purchased. Organizations facing the challenges of maintaining large or complex network environments gain immediate access to Ruckus expertise and resources to accelerate problem resolution, increase uptime and improve overall efficiency.

Remote Technical Support (RMT)

Provides 24/7 access to the TAC, software updates and online self-service tools. RMT support is available worldwide and around the clock, including holidays. This is a good option for customers who are satisfied with the replacement parts coverage under the Ruckus Assurance Limited Lifetime Warranty.

Next-business-day Parts (NDP)

Provides a next-business-day response for parts replacements from the time Ruckus has determined a replacement is needed and confirmed shipment with the customer. Physical installation of the replacement part and return of the defective product must be performed by the customer. NDP is available in most major metropolitan areas worldwide and is available to the customer on business days 9×5 local time. For ICX switches, this support is required to provide next-business-day replacement of removable optics and LEDs not covered by the Ruckus Assurance Limited Lifetime Warranty.

Overview

Ruckus support services help improve performance and reduce downtime with fast, expert technical support and flexible hardware coverage on demand. Ruckus Support TAC experts are available 24 hours a day, 365 days a year. The Ruckus Support Portal provides access to our software downloads, knowledge library and self-help tools.

The Ruckus Diagnostic Dashboard (RDD) is available free of charge to all Ruckus Support customers. The RDD helps automate troubleshooting and enables proactive support.

Ruckus provides an extensive portfolio of online training and educational content free of charge. Instructor-led courses are also available.

Benefits

• Resolves issues faster by identifying errors sooner.
• Reduces risk by having access to technical experts and tools 24 hours, 365 days a year.
• Get replacements for defective parts with a variation of SLAs to meet your needs.
• Increase operational efficiency to make network managers, administrators and engineers more productive.
• Additional engagements tailored to specific customer needs are available.

Ruckus understands that each network is unique and requires a different level of technical support to meet the customer's business needs. Ruckus provides a single support contact for ICX switching products, regardless of the channel through which they were purchased. Organizations facing the challenges of maintaining large or complex network environments gain immediate access to Ruckus expertise and resources to accelerate problem resolution, increase uptime and improve overall efficiency.

Remote Technical Support (RMT)

Provides 24/7 access to the TAC, software updates and online self-service tools. RMT support is available worldwide and around the clock, including holidays. This is a good option for customers who are satisfied with the replacement parts coverage under the Ruckus Assurance Limited Lifetime Warranty.

Next-business-day Parts (NDP)

Provides a next-business-day response for parts replacements from the time Ruckus has determined a replacement is needed and confirmed shipment with the customer. Physical installation of the replacement part and return of the defective product must be performed by the customer. NDP is available in most major metropolitan areas worldwide and is available to the customer on business days 9×5 local time. For ICX switches, this support is required to provide next-business-day replacement of removable optics and LEDs not covered by the Ruckus Assurance Limited Lifetime Warranty.

Overview

Ruckus support services help improve performance and reduce downtime with fast, expert technical support and flexible hardware coverage on demand. Ruckus Support TAC experts are available 24 hours a day, 365 days a year. The Ruckus Support Portal provides access to our software downloads, knowledge library and self-help tools.

The Ruckus Diagnostic Dashboard (RDD) is available free of charge to all Ruckus Support customers. The RDD helps automate troubleshooting and enables proactive support.

Ruckus provides an extensive portfolio of online training and educational content free of charge. Instructor-led courses are also available.

Benefits

• Resolves issues faster by identifying errors sooner.
• Reduces risk by having access to technical experts and tools 24 hours, 365 days a year.
• Get replacements for defective parts with a variation of SLAs to meet your needs.
• Increase operational efficiency to make network managers, administrators and engineers more productive.
• Additional engagements tailored to specific customer needs are available.

The Ruckus ICX 8200 switch series offers you outstanding performance and reliability for your network. With its impressive performance and flexibility, it is the ideal solution for businesses that require a scalable and high-performance network infrastructure.

The Ruckus ICX 8200 offers impressive bandwidth and high speeds to meet the increasing demands of modern businesses. With an advanced architecture and robust hardware, this switch is able to efficiently handle large amounts of data and maintain consistently high levels of network performance.

Thanks to its modular design, the Ruckus ICX 8200 allows for easy scalability to support the growth of your business with ease. You can add additional modules to provide new features and ports, giving you the flexibility to adapt your network.

The switch series has comprehensive network management features that allow for easy configuration and monitoring. With the user-friendly interface and centralised management, you always have full control over your network and can optimise it efficiently.

In addition, the Ruckus ICX 8200 offers extensive security features to protect your network from threats. With advanced features such as Access Control Lists (ACLs), Virtual Local Area Networks (VLANs) and encryption, this switch ensures that your data is securely transmitted and protected.

In summary, the Ruckus ICX 8200 switch offers a powerful and flexible solution for businesses that require a scalable and reliable network. With its impressive performance, easy scalability and extensive network management and security features, it is the right choice to meet your business needs and take your network to the next level.

Standard Ruckus ICX8200-24 Switch

24 x 10/100/1000 Mbps RJ-45 Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports

Additional port variants of ICX8200-24 Switch:

ICX8200-24F: 24 x 1GbE SFP Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports

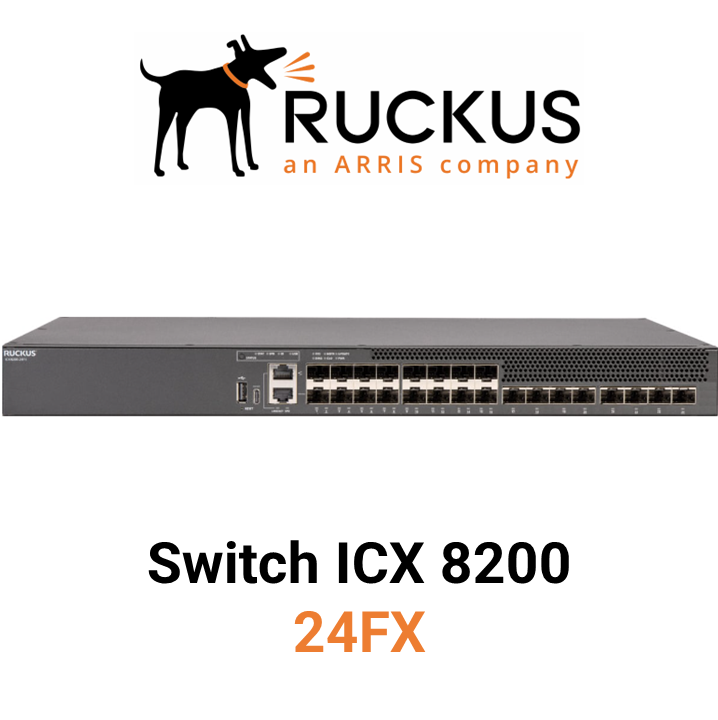

ICX8200-24FX: 16 x 1/10GbE SFP+ Ports, 8 x 1/10/25 GbE uplink/stacking SFP28 Ports

ICX8200-24P: 24 x 10/100/1000 Mbps RJ-45 PoE+ Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports, 370 W PoE budget. PoE+ 802.3at

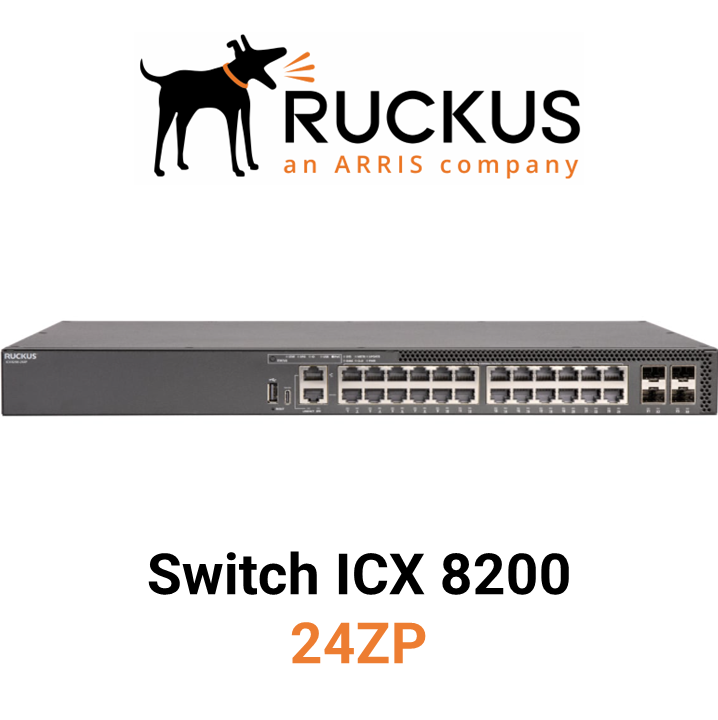

ICX8200-24ZP: 24 x 100/1000/2500 Mbps RJ-45 PoE++ 90W Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports, 740 W PoE budget

Standard Ruckus ICX8200-24 Switch

24 x 10/100/1000 Mbps RJ-45 Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports

Additional port variants of ICX8200-24 Switch:

ICX8200-24F: 24 x 1GbE SFP Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports

ICX8200-24FX: 16 x 1/10GbE SFP+ Ports, 8 x 1/10/25 GbE uplink/stacking SFP28 Ports

ICX8200-24P: 24 x 10/100/1000 Mbps RJ-45 PoE+ Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports, 370 W PoE budget. PoE+ 802.3at

ICX8200-24ZP: 24 x 100/1000/2500 Mbps RJ-45 PoE++ 90W Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports, 740 W PoE budget

The Ruckus ICX 8200 switch series offers you outstanding performance and reliability for your network. With its impressive performance and flexibility, it is the ideal solution for businesses that require a scalable and high-performance network infrastructure.

The Ruckus ICX 8200 offers impressive bandwidth and high speeds to meet the increasing demands of modern businesses. With an advanced architecture and robust hardware, this switch is able to efficiently handle large amounts of data and maintain consistently high levels of network performance.

Thanks to its modular design, the Ruckus ICX 8200 allows for easy scalability to support the growth of your business with ease. You can add additional modules to provide new features and ports, giving you the flexibility to adapt your network.

The switch series has comprehensive network management features that allow for easy configuration and monitoring. With the user-friendly interface and centralised management, you always have full control over your network and can optimise it efficiently.

In addition, the Ruckus ICX 8200 offers extensive security features to protect your network from threats. With advanced features such as Access Control Lists (ACLs), Virtual Local Area Networks (VLANs) and encryption, this switch ensures that your data is securely transmitted and protected.

In summary, the Ruckus ICX 8200 switch offers a powerful and flexible solution for businesses that require a scalable and reliable network. With its impressive performance, easy scalability and extensive network management and security features, it is the right choice to meet your business needs and take your network to the next level.

Standard Ruckus ICX8200-24 Switch

24 x 10/100/1000 Mbps RJ-45 Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports

Additional port variants of ICX8200-24 Switch:

ICX8200-24F: 24 x 1GbE SFP Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports

ICX8200-24FX: 16 x 1/10GbE SFP+ Ports, 8 x 1/10/25 GbE uplink/stacking SFP28 Ports

ICX8200-24P: 24 x 10/100/1000 Mbps RJ-45 PoE+ Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports, 370 W PoE budget. PoE+ 802.3at

ICX8200-24ZP: 24 x 100/1000/2500 Mbps RJ-45 PoE++ 90W Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports, 740 W PoE budget

Standard Ruckus ICX8200-24 Switch

24 x 10/100/1000 Mbps RJ-45 Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports

Additional port variants of ICX8200-24 Switch:

ICX8200-24F: 24 x 1GbE SFP Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports

ICX8200-24FX: 16 x 1/10GbE SFP+ Ports, 8 x 1/10/25 GbE uplink/stacking SFP28 Ports

ICX8200-24P: 24 x 10/100/1000 Mbps RJ-45 PoE+ Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports, 370 W PoE budget. PoE+ 802.3at

ICX8200-24ZP: 24 x 100/1000/2500 Mbps RJ-45 PoE++ 90W Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports, 740 W PoE budget

The Ruckus ICX 8200 switch series offers you outstanding performance and reliability for your network. With its impressive performance and flexibility, it is the ideal solution for businesses that require a scalable and high-performance network infrastructure.

The Ruckus ICX 8200 offers impressive bandwidth and high speeds to meet the increasing demands of modern businesses. With an advanced architecture and robust hardware, this switch is able to efficiently handle large amounts of data and maintain consistently high levels of network performance.

Thanks to its modular design, the Ruckus ICX 8200 allows for easy scalability to support the growth of your business with ease. You can add additional modules to provide new features and ports, giving you the flexibility to adapt your network.

The switch series has comprehensive network management features that allow for easy configuration and monitoring. With the user-friendly interface and centralised management, you always have full control over your network and can optimise it efficiently.

In addition, the Ruckus ICX 8200 offers extensive security features to protect your network from threats. With advanced features such as Access Control Lists (ACLs), Virtual Local Area Networks (VLANs) and encryption, this switch ensures that your data is securely transmitted and protected.

In summary, the Ruckus ICX 8200 switch offers a powerful and flexible solution for businesses that require a scalable and reliable network. With its impressive performance, easy scalability and extensive network management and security features, it is the right choice to meet your business needs and take your network to the next level.

Standard Ruckus ICX8200-24 Switch

24 x 10/100/1000 Mbps RJ-45 Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports

Additional port variants of ICX8200-24 Switch:

ICX8200-24F: 24 x 1GbE SFP Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports

ICX8200-24FX: 16 x 1/10GbE SFP+ Ports, 8 x 1/10/25 GbE uplink/stacking SFP28 Ports

ICX8200-24P: 24 x 10/100/1000 Mbps RJ-45 PoE+ Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports, 370 W PoE budget. PoE+ 802.3at

ICX8200-24ZP: 24 x 100/1000/2500 Mbps RJ-45 PoE++ 90W Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports, 740 W PoE budget

Standard Ruckus ICX8200-24 Switch

24 x 10/100/1000 Mbps RJ-45 Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports

Additional port variants of ICX8200-24 Switch:

ICX8200-24F: 24 x 1GbE SFP Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports

ICX8200-24FX: 16 x 1/10GbE SFP+ Ports, 8 x 1/10/25 GbE uplink/stacking SFP28 Ports

ICX8200-24P: 24 x 10/100/1000 Mbps RJ-45 PoE+ Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports, 370 W PoE budget. PoE+ 802.3at

ICX8200-24ZP: 24 x 100/1000/2500 Mbps RJ-45 PoE++ 90W Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports, 740 W PoE budget

The Ruckus ICX 8200 switch series offers you outstanding performance and reliability for your network. With its impressive performance and flexibility, it is the ideal solution for businesses that require a scalable and high-performance network infrastructure.

The Ruckus ICX 8200 offers impressive bandwidth and high speeds to meet the increasing demands of modern businesses. With an advanced architecture and robust hardware, this switch is able to efficiently handle large amounts of data and maintain consistently high levels of network performance.

Thanks to its modular design, the Ruckus ICX 8200 allows for easy scalability to support the growth of your business with ease. You can add additional modules to provide new features and ports, giving you the flexibility to adapt your network.

The switch series has comprehensive network management features that allow for easy configuration and monitoring. With the user-friendly interface and centralised management, you always have full control over your network and can optimise it efficiently.

In addition, the Ruckus ICX 8200 offers extensive security features to protect your network from threats. With advanced features such as Access Control Lists (ACLs), Virtual Local Area Networks (VLANs) and encryption, this switch ensures that your data is securely transmitted and protected.

In summary, the Ruckus ICX 8200 switch offers a powerful and flexible solution for businesses that require a scalable and reliable network. With its impressive performance, easy scalability and extensive network management and security features, it is the right choice to meet your business needs and take your network to the next level.

Standard Ruckus ICX8200-24 Switch

24 x 10/100/1000 Mbps RJ-45 Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports

Additional port variants of ICX8200-24 Switch:

ICX8200-24F: 24 x 1GbE SFP Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports

ICX8200-24FX: 16 x 1/10GbE SFP+ Ports, 8 x 1/10/25 GbE uplink/stacking SFP28 Ports

ICX8200-24P: 24 x 10/100/1000 Mbps RJ-45 PoE+ Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports, 370 W PoE budget. PoE+ 802.3at

ICX8200-24ZP: 24 x 100/1000/2500 Mbps RJ-45 PoE++ 90W Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports, 740 W PoE budget

Standard Ruckus ICX8200-24 Switch

24 x 10/100/1000 Mbps RJ-45 Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports

Additional port variants of ICX8200-24 Switch:

ICX8200-24F: 24 x 1GbE SFP Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports

ICX8200-24FX: 16 x 1/10GbE SFP+ Ports, 8 x 1/10/25 GbE uplink/stacking SFP28 Ports

ICX8200-24P: 24 x 10/100/1000 Mbps RJ-45 PoE+ Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports, 370 W PoE budget. PoE+ 802.3at

ICX8200-24ZP: 24 x 100/1000/2500 Mbps RJ-45 PoE++ 90W Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports, 740 W PoE budget

The Ruckus ICX 8200 switch series offers you outstanding performance and reliability for your network. With its impressive performance and flexibility, it is the ideal solution for businesses that require a scalable and high-performance network infrastructure.

The Ruckus ICX 8200 offers impressive bandwidth and high speeds to meet the increasing demands of modern businesses. With an advanced architecture and robust hardware, this switch is able to efficiently handle large amounts of data and maintain consistently high levels of network performance.

Thanks to its modular design, the Ruckus ICX 8200 allows for easy scalability to support the growth of your business with ease. You can add additional modules to provide new features and ports, giving you the flexibility to adapt your network.

The switch series has comprehensive network management features that allow for easy configuration and monitoring. With the user-friendly interface and centralised management, you always have full control over your network and can optimise it efficiently.

In addition, the Ruckus ICX 8200 offers extensive security features to protect your network from threats. With advanced features such as Access Control Lists (ACLs), Virtual Local Area Networks (VLANs) and encryption, this switch ensures that your data is securely transmitted and protected.

In summary, the Ruckus ICX 8200 switch offers a powerful and flexible solution for businesses that require a scalable and reliable network. With its impressive performance, easy scalability and extensive network management and security features, it is the right choice to meet your business needs and take your network to the next level.

Standard Ruckus ICX8200-24 Switch

24 x 10/100/1000 Mbps RJ-45 Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports

Additional port variants of ICX8200-24 Switch:

ICX8200-24F: 24 x 1GbE SFP Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports

ICX8200-24FX: 16 x 1/10GbE SFP+ Ports, 8 x 1/10/25 GbE uplink/stacking SFP28 Ports

ICX8200-24P: 24 x 10/100/1000 Mbps RJ-45 PoE+ Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports, 370 W PoE budget. PoE+ 802.3at

ICX8200-24ZP: 24 x 100/1000/2500 Mbps RJ-45 PoE++ 90W Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports, 740 W PoE budget

Standard Ruckus ICX8200-24 Switch

24 x 10/100/1000 Mbps RJ-45 Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports

Additional port variants of ICX8200-24 Switch:

ICX8200-24F: 24 x 1GbE SFP Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports

ICX8200-24FX: 16 x 1/10GbE SFP+ Ports, 8 x 1/10/25 GbE uplink/stacking SFP28 Ports

ICX8200-24P: 24 x 10/100/1000 Mbps RJ-45 PoE+ Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports, 370 W PoE budget. PoE+ 802.3at

ICX8200-24ZP: 24 x 100/1000/2500 Mbps RJ-45 PoE++ 90W Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports, 740 W PoE budget

The Ruckus ICX 8200 switch series offers you outstanding performance and reliability for your network. With its impressive performance and flexibility, it is the ideal solution for businesses that require a scalable and high-performance network infrastructure.

The Ruckus ICX 8200 offers impressive bandwidth and high speeds to meet the increasing demands of modern businesses. With an advanced architecture and robust hardware, this switch is able to efficiently handle large amounts of data and maintain consistently high levels of network performance.

Thanks to its modular design, the Ruckus ICX 8200 allows for easy scalability to support the growth of your business with ease. You can add additional modules to provide new features and ports, giving you the flexibility to adapt your network.

The switch series has comprehensive network management features that allow for easy configuration and monitoring. With the user-friendly interface and centralised management, you always have full control over your network and can optimise it efficiently.

In addition, the Ruckus ICX 8200 offers extensive security features to protect your network from threats. With advanced features such as Access Control Lists (ACLs), Virtual Local Area Networks (VLANs) and encryption, this switch ensures that your data is securely transmitted and protected.

In summary, the Ruckus ICX 8200 switch offers a powerful and flexible solution for businesses that require a scalable and reliable network. With its impressive performance, easy scalability and extensive network management and security features, it is the right choice to meet your business needs and take your network to the next level.

Standard Ruckus ICX8200-48 Switch

48 x 10/100/1000 Mbps RJ-45 Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports

Additional port variants of ICX8200-48 Switch:

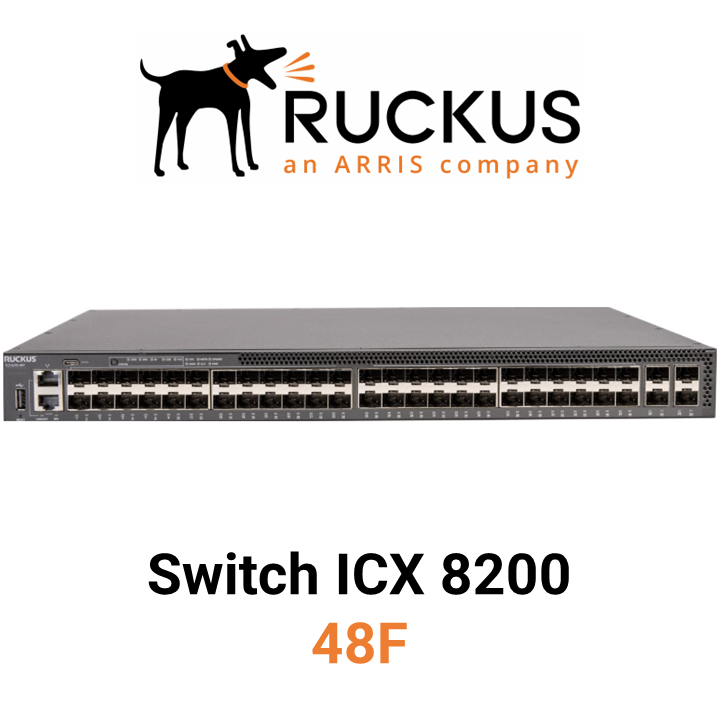

ICX8200-48F: 48 x 1GbE SFP Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports

ICX8200-48P: 48 x 10/100/1000 Mbps RJ-45 PoE+ Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports, 370 W PoE budget. PoE+ 802.3at

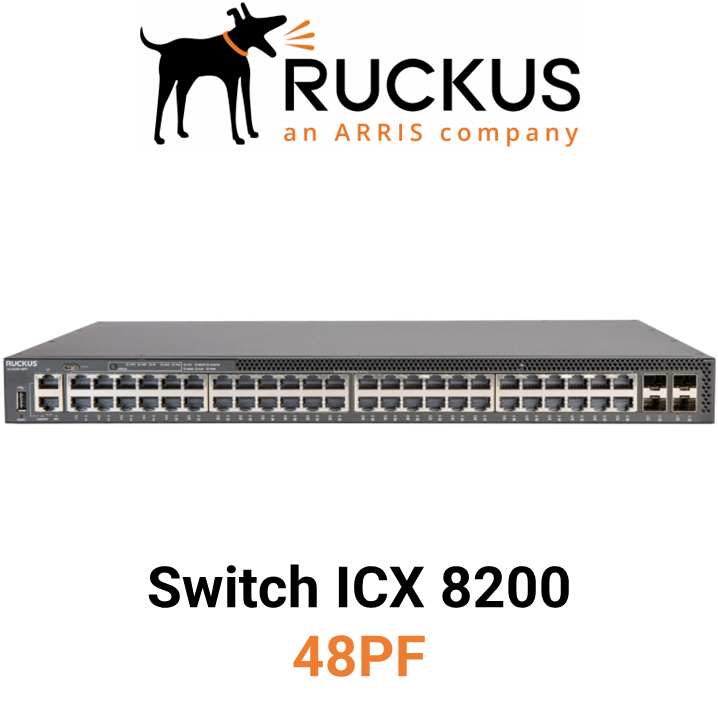

ICX8200-48PF: 48 x 10/100/1000 Mbps RJ-45 PoE+ Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports, 740 W PoE budget. PoE+ 802.3at

The Ruckus ICX 8200 switch series offers you outstanding performance and reliability for your network. With its impressive performance and flexibility, it is the ideal solution for businesses that require a scalable and high-performance network infrastructure.

The Ruckus ICX 8200 offers impressive bandwidth and high speeds to meet the increasing demands of modern businesses. With an advanced architecture and robust hardware, this switch is able to efficiently handle large amounts of data and maintain consistently high levels of network performance.

Thanks to its modular design, the Ruckus ICX 8200 allows for easy scalability to support the growth of your business with ease. You can add additional modules to provide new features and ports, giving you the flexibility to adapt your network.

The switch series has comprehensive network management features that allow for easy configuration and monitoring. With the user-friendly interface and centralised management, you always have full control over your network and can optimise it efficiently.

In addition, the Ruckus ICX 8200 offers extensive security features to protect your network from threats. With advanced features such as Access Control Lists (ACLs), Virtual Local Area Networks (VLANs) and encryption, this switch ensures that your data is securely transmitted and protected.

In summary, the Ruckus ICX 8200 switch offers a powerful and flexible solution for businesses that require a scalable and reliable network. With its impressive performance, easy scalability and extensive network management and security features, it is the right choice to meet your business needs and take your network to the next level.

Standard Ruckus ICX8200-48 Switch

48 x 10/100/1000 Mbps RJ-45 Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports

Additional port variants of ICX8200-48 Switch:

ICX8200-48F: 48 x 1GbE SFP Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports

ICX8200-48P: 48 x 10/100/1000 Mbps RJ-45 PoE+ Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports, 370 W PoE budget. PoE+ 802.3at

ICX8200-48PF: 48 x 10/100/1000 Mbps RJ-45 PoE+ Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports, 740 W PoE budget. PoE+ 802.3at

The Ruckus ICX 8200 switch series offers you outstanding performance and reliability for your network. With its impressive performance and flexibility, it is the ideal solution for businesses that require a scalable and high-performance network infrastructure.

The Ruckus ICX 8200 offers impressive bandwidth and high speeds to meet the increasing demands of modern businesses. With an advanced architecture and robust hardware, this switch is able to efficiently handle large amounts of data and maintain consistently high levels of network performance.

Thanks to its modular design, the Ruckus ICX 8200 allows for easy scalability to support the growth of your business with ease. You can add additional modules to provide new features and ports, giving you the flexibility to adapt your network.

The switch series has comprehensive network management features that allow for easy configuration and monitoring. With the user-friendly interface and centralised management, you always have full control over your network and can optimise it efficiently.

In addition, the Ruckus ICX 8200 offers extensive security features to protect your network from threats. With advanced features such as Access Control Lists (ACLs), Virtual Local Area Networks (VLANs) and encryption, this switch ensures that your data is securely transmitted and protected.

In summary, the Ruckus ICX 8200 switch offers a powerful and flexible solution for businesses that require a scalable and reliable network. With its impressive performance, easy scalability and extensive network management and security features, it is the right choice to meet your business needs and take your network to the next level.

Standard Ruckus ICX8200-48 Switch

48 x 10/100/1000 Mbps RJ-45 Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports

Additional port variants of ICX8200-48 Switch:

ICX8200-48F: 48 x 1GbE SFP Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports

ICX8200-48P: 48 x 10/100/1000 Mbps RJ-45 PoE+ Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports, 370 W PoE budget. PoE+ 802.3at

ICX8200-48PF: 48 x 10/100/1000 Mbps RJ-45 PoE+ Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports, 740 W PoE budget. PoE+ 802.3at

The Ruckus ICX 8200 switch series offers you outstanding performance and reliability for your network. With its impressive performance and flexibility, it is the ideal solution for businesses that require a scalable and high-performance network infrastructure.

The Ruckus ICX 8200 offers impressive bandwidth and high speeds to meet the increasing demands of modern businesses. With an advanced architecture and robust hardware, this switch is able to efficiently handle large amounts of data and maintain consistently high levels of network performance.

Thanks to its modular design, the Ruckus ICX 8200 allows for easy scalability to support the growth of your business with ease. You can add additional modules to provide new features and ports, giving you the flexibility to adapt your network.

The switch series has comprehensive network management features that allow for easy configuration and monitoring. With the user-friendly interface and centralised management, you always have full control over your network and can optimise it efficiently.

In addition, the Ruckus ICX 8200 offers extensive security features to protect your network from threats. With advanced features such as Access Control Lists (ACLs), Virtual Local Area Networks (VLANs) and encryption, this switch ensures that your data is securely transmitted and protected.

In summary, the Ruckus ICX 8200 switch offers a powerful and flexible solution for businesses that require a scalable and reliable network. With its impressive performance, easy scalability and extensive network management and security features, it is the right choice to meet your business needs and take your network to the next level.

Standard Ruckus ICX8200-48 Switch

48 x 10/100/1000 Mbps RJ-45 Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports

Additional port variants of ICX8200-48 Switch:

ICX8200-48F: 48 x 1GbE SFP Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports

ICX8200-48P: 48 x 10/100/1000 Mbps RJ-45 PoE+ Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports, 370 W PoE budget. PoE+ 802.3at

ICX8200-48PF: 48 x 10/100/1000 Mbps RJ-45 PoE+ Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports, 740 W PoE budget. PoE+ 802.3at

The Ruckus ICX 8200 switch series offers you outstanding performance and reliability for your network. With its impressive performance and flexibility, it is the ideal solution for businesses that require a scalable and high-performance network infrastructure.

The Ruckus ICX 8200 offers impressive bandwidth and high speeds to meet the increasing demands of modern businesses. With an advanced architecture and robust hardware, this switch is able to efficiently handle large amounts of data and maintain consistently high levels of network performance.

Thanks to its modular design, the Ruckus ICX 8200 allows for easy scalability to support the growth of your business with ease. You can add additional modules to provide new features and ports, giving you the flexibility to adapt your network.

The switch series has comprehensive network management features that allow for easy configuration and monitoring. With the user-friendly interface and centralised management, you always have full control over your network and can optimise it efficiently.

In addition, the Ruckus ICX 8200 offers extensive security features to protect your network from threats. With advanced features such as Access Control Lists (ACLs), Virtual Local Area Networks (VLANs) and encryption, this switch ensures that your data is securely transmitted and protected.

In summary, the Ruckus ICX 8200 switch offers a powerful and flexible solution for businesses that require a scalable and reliable network. With its impressive performance, easy scalability and extensive network management and security features, it is the right choice to meet your business needs and take your network to the next level.

Standard Ruckus ICX8200-48 Switch

48 x 10/100/1000 Mbps RJ-45 Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports

Additional port variants of ICX8200-48 Switch:

ICX8200-48F: 48 x 1GbE SFP Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports

ICX8200-48P: 48 x 10/100/1000 Mbps RJ-45 PoE+ Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports, 370 W PoE budget. PoE+ 802.3at

ICX8200-48PF: 48 x 10/100/1000 Mbps RJ-45 PoE+ Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports, 740 W PoE budget. PoE+ 802.3at

The Ruckus ICX 8200 switch series offers you outstanding performance and reliability for your network. With its impressive performance and flexibility, it is the ideal solution for businesses that require a scalable and high-performance network infrastructure.

The Ruckus ICX 8200 offers impressive bandwidth and high speeds to meet the increasing demands of modern businesses. With an advanced architecture and robust hardware, this switch is able to efficiently handle large amounts of data and maintain consistently high levels of network performance.

Thanks to its modular design, the Ruckus ICX 8200 allows for easy scalability to support the growth of your business with ease. You can add additional modules to provide new features and ports, giving you the flexibility to adapt your network.

The switch series has comprehensive network management features that allow for easy configuration and monitoring. With the user-friendly interface and centralised management, you always have full control over your network and can optimise it efficiently.

In addition, the Ruckus ICX 8200 offers extensive security features to protect your network from threats. With advanced features such as Access Control Lists (ACLs), Virtual Local Area Networks (VLANs) and encryption, this switch ensures that your data is securely transmitted and protected.

In summary, the Ruckus ICX 8200 switch offers a powerful and flexible solution for businesses that require a scalable and reliable network. With its impressive performance, easy scalability and extensive network management and security features, it is the right choice to meet your business needs and take your network to the next level.

Standard Ruckus ICX8200-48 Switch

48 x 10/100/1000 Mbps RJ-45 Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports

Additional port variants of ICX8200-48 Switch:

ICX8200-48F: 48 x 1GbE SFP Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports

ICX8200-48P: 48 x 10/100/1000 Mbps RJ-45 PoE+ Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports, 370 W PoE budget. PoE+ 802.3at

ICX8200-48PF: 48 x 10/100/1000 Mbps RJ-45 PoE+ Ports, 4 x 1/10/25 GbE uplink/stacking SFP28 Ports, 740 W PoE budget. PoE+ 802.3at

The Ruckus ICX 8200 switch series offers you outstanding performance and reliability for your network. With its impressive performance and flexibility, it is the ideal solution for businesses that require a scalable and high-performance network infrastructure.

The Ruckus ICX 8200 offers impressive bandwidth and high speeds to meet the increasing demands of modern businesses. With an advanced architecture and robust hardware, this switch is able to efficiently handle large amounts of data and maintain consistently high levels of network performance.

Thanks to its modular design, the Ruckus ICX 8200 allows for easy scalability to support the growth of your business with ease. You can add additional modules to provide new features and ports, giving you the flexibility to adapt your network.

The switch series has comprehensive network management features that allow for easy configuration and monitoring. With the user-friendly interface and centralised management, you always have full control over your network and can optimise it efficiently.

In addition, the Ruckus ICX 8200 offers extensive security features to protect your network from threats. With advanced features such as Access Control Lists (ACLs), Virtual Local Area Networks (VLANs) and encryption, this switch ensures that your data is securely transmitted and protected.

In summary, the Ruckus ICX 8200 switch offers a powerful and flexible solution for businesses that require a scalable and reliable network. With its impressive performance, easy scalability and extensive network management and security features, it is the right choice to meet your business needs and take your network to the next level.

ICX8200-C08PF: 8 x 10/100/1000 Mbps RJ-45 PoE+ Ports, 2 x 1/10GbE uplink/stacking SFP+ Ports, 124 W PoE budget PoE+ 802.3at

ICX8200-C08ZP: 4 x 100/1000/2500 Mbps RJ-45 PoE++ 90W Ports, 4 x 1/2,5/5/10 Gbps RJ-45 PoE++ 90W Ports, 2 x 1/10/25 GbE uplink/stacking SFP28 Ports, 240 W PoE budget

The Ruckus ICX 8200 switch series offers you outstanding performance and reliability for your network. With its impressive performance and flexibility, it is the ideal solution for businesses that require a scalable and high-performance network infrastructure.

The Ruckus ICX 8200 offers impressive bandwidth and high speeds to meet the increasing demands of modern businesses. With an advanced architecture and robust hardware, this switch is able to efficiently handle large amounts of data and maintain consistently high levels of network performance.

Thanks to its modular design, the Ruckus ICX 8200 allows for easy scalability to support the growth of your business with ease. You can add additional modules to provide new features and ports, giving you the flexibility to adapt your network.

The switch series has comprehensive network management features that allow for easy configuration and monitoring. With the user-friendly interface and centralised management, you always have full control over your network and can optimise it efficiently.

In addition, the Ruckus ICX 8200 offers extensive security features to protect your network from threats. With advanced features such as Access Control Lists (ACLs), Virtual Local Area Networks (VLANs) and encryption, this switch ensures that your data is securely transmitted and protected.

In summary, the Ruckus ICX 8200 switch offers a powerful and flexible solution for businesses that require a scalable and reliable network. With its impressive performance, easy scalability and extensive network management and security features, it is the right choice to meet your business needs and take your network to the next level.

ICX8200-C08PF: 8 x 10/100/1000 Mbps RJ-45 PoE+ Ports, 2 x 1/10GbE uplink/stacking SFP+ Ports, 124 W PoE budget PoE+ 802.3at

ICX8200-C08ZP: 4 x 100/1000/2500 Mbps RJ-45 PoE++ 90W Ports, 4 x 1/2,5/5/10 Gbps RJ-45 PoE++ 90W Ports, 2 x 1/10/25 GbE uplink/stacking SFP28 Ports, 240 W PoE budget

The Ruckus ICX 7150 Series stackable switches deliver the performance, flexibility and scalability required for enterprise access provisioning. With non-blocking performance and up to 8x10 GbE ports for uplinks or stacking, Ruckus sets new standards. They offer seamless interoperability with Ruckus wireless products to provide unified wired and wireless network access. In addition, Ruckus' multi-gigabit Ethernet technology over standard Ethernet cables provides the bandwidth speeds needed to optimise the performance of high-performance wireless access points and latest-generation edge devices.

Standard Ruckus ICX7150-24 Switch:

1 x management RJ-45, 1 x console RJ-45, 24 x 1000Base-T RJ-45, 2 x 1000Base-T RJ-45 uplink, 1 x USB-C management

Additional port variants ICX7150-24 Switch:

ICX7150-24-2X10G: 2 x 10Gbit LAN SFP+, 2 x Gigabit LAN SFP+ upgradeable to 10 G

ICX7150-24-4X10GR: 4 x Gigabit / 10Gbit LAN SFP+ uplink/stacking

ICX7150-24-4X1G: 4 x Gigabit LAN SFP+ upgradeable to 10 G

ICX7150-24P-2X10G: 24 x 1000Base-T RJ-45 12 ports (PoE+)/24 ports (PoE), 2 x 10Gbit LAN SFP+ uplink/stacking, 2 x Gigabit LAN SFP+ upgradeable to 10 G

ICX7150-24P-4X10GR: 24x 1000Base-T RJ-45 12 ports (PoE+)/24 ports (PoE), 4 x Gigabit / 10 Gbit LAN SFP+ uplink/stacking

ICX7150-24P-4X1G: 24 x 1000Base-T RJ-45 12 ports (PoE+)/24 ports (PoE), 4 x Gigabit LAN SFP+ upgradeable to 10 G

The Ruckus ICX 7150 Series stackable switches deliver the performance, flexibility and scalability required for enterprise access provisioning. With non-blocking performance and up to 8x10 GbE ports for uplinks or stacking, Ruckus sets new standards. They offer seamless interoperability with Ruckus wireless products to provide unified wired and wireless network access. In addition, Ruckus' multi-gigabit Ethernet technology over standard Ethernet cables provides the bandwidth speeds needed to optimise the performance of high-performance wireless access points and latest-generation edge devices.

Standard Ruckus ICX7150-48 Switch:

1 x management RJ-45, 1 x console RJ-45, 48 x 1000Base-T RJ-45, 2 x 1000Base-T RJ-45 uplink, 2 x Gbit LAN SFP+ uplink/stacking, 1 x USB-C management

Additional port variants ICX7150-48 Switch:

ICX7150-48-2X10G: 2 x 10Gbit LAN SFP+ uplink/stacking, 2 x Gigabit LAN SFP+ upgradeable to 10 G

ICX150-48-4X10GR: 4 x Gigabit / 10Gbit LAN SFP+ uplink/stacking

ICX7150-48-4X1G: 4 x Gigabit LAN SFP+ upgradeable to 10 G

ICX7150-48P-2X10G: 48 x 1000Base-T RJ-45 12 ports (PoE+)/24 ports (PoE), 2 x 10Gbit LAN SFP+ uplink/stacking, 2 x Gigabit LAN SFP+ upgradeable to 10 G

ICX7150-48P-4X10GR: 4 x Gigabit / 10Gbit LAN SFP+ uplink/stacking

ICX7150-48P-4X1G: 48 x 1000Base-T RJ-45 12 ports (PoE+) / 24 ports (PoE), 4 x Gigabit LAN SFP+ upgradeable to 10 G

ICX7150-48PF-2X10G: 48 x 1000Base-T RJ-45 24 ports (PoE+) / 48 ports (PoE), 2 x 10Gbit LAN SFP+ uplink/stacking, 2 x Gigabit LAN SFP+ upgradeable to 10 G, AC power

ICX7150-48PF-4X10GR: 48 x 1000Base-T RJ-45 24 ports (PoE+) / 48 ports (PoE), 4 x Gigabit / 10Gbit LAN SFP+ uplink/stacking, AC power

ICX7150-48PF-4X1G: 48 x 1000Base-T RJ-45 24 ports (PoE+) / 48 ports (PoE), 4 x Gigabit LAN SFP+ upgradeable to 10 G, AC power

The Ruckus ICX 7150 Series stackable switches deliver the performance, flexibility and scalability required for enterprise access provisioning. With non-blocking performance and up to 8x10 GbE ports for uplinks or stacking, Ruckus sets new standards. They offer seamless interoperability with Ruckus wireless products to provide unified wired and wireless network access. In addition, Ruckus' multi-gigabit Ethernet technology over standard Ethernet cables provides the bandwidth speeds needed to optimise the performance of high-performance wireless access points and latest-generation edge devices.

ICX7150-C10ZP-2X10GR: 8 x 2.5 Gbps ports, 2 x 2.5/5/10 GbpS ports, 2 x 1/10GbE uplink/stacking SFP/SFP+ ports

ICX7150-C12P-2X10GR: 12 x 1000Base-T RJ-45 4 ports (PoE+) / 8 ports (PoE), 2 x Gigabit / 10Gbit LAN SFP+ uplink/stacking

ICX7150-C12P-2X1G: 12 x 1000Base-T RJ-45 4 ports (PoE+) / 8 ports (PoE), 2 x Gigabit LAN SFP+ upgradable to 10G

In a highly competitive market, managed service providers (MSPs) are looking for new ways to differentiate their services and develop new revenue streams. One nascent market is the "mobile-wireless" segment, where new opportunities exist to complement mobile and semi-mobile public access with branded Wi-Fi that complements LTE networks. But integrating with existing LTE networks with mobile Wi-Fi hotspot services has not been easy.

The Ruckus M510 Mobile-wireless Access Point (AP) is an 802.11ac 2x2:2 Wave 2 Wi-Fi AP designed to backhaul LTE networks and connect wirelessly to any network without the need for an Ethernet cable connection.

Because of its LTE wireless backhaul capabilities, the M510 is suitable for multiple deployment scenarios that have not been served before, including in-vehicle mobile Wi-Fi ("mobile AP"), rapid Wi-Fi deployment for pop-up retailers or first responders, and temporary Wi-Fi deployment at a construction site. The M510's LTE backhaul can serve as failover or redundancy for WAN connectivity. In addition, the M510 meets an operator's requirement to provide Wi-Fi connectivity for outdoor mobile hotspots for transit hubs or isolated public locations where wired connectivity is too expensive or impossible.

The M510 AP features patented technologies found only in the Ruckus Wi-Fi portfolio.

• Extended coverage with patented BeamFlex+, which uses multi-directional antenna patterns.
• Improved throughput with ChannelFly, which dynamically finds less congested Wi-Fi channels.

In addition, the M510's built-in GPS allows customers to automatically pinpoint the exact location of any access point on a network or geographic map in real time - greatly simplifying installation, tracking and maintenance.

Whether operators are deploying tens or tens of thousands of APs, the M510 is easily managed through any physical or virtual SmartZone controller. MSPs can take advantage of SmartZone's carrier-grade features, such as resilience and geo-redundancy.

Your benefits:

• MOBILE WI-FI
  Superior performance, managed Wi-Fi without cable pulls over an LTE connection to support mobile hotspot requirements.
• CARRIER-GRADE MANAGEMENT
  The M510 with SmartZone offers carrier-grade management capabilities. MSPs can use physical or virtual SmartZone controllers to manage all APs.
• GPS ON BOARD
  GPS supports location-based services to track the mobile unit.
• WI-FI COVERAGE FOR BUSINESS
  With patented BeamFlex+™ adaptive antenna technology and multiple directional antenna patterns, a superior user experience is enabled in any environment.
• AUTOMATISING THE OPTIMUM THROUGHPUT
  The ChannelFly™ dynamic channel technology uses machine learning to automatically find the least congested channels
  ; you always get the highest throughput the band can support.
• CONNECT MORE DEVICES
  Connect more devices simultaneously with two MU-MIMO spatial streams and simultaneous dual-band 2.4/5 GHz radios, while improving the performance of non-Wave 2 devices.
• MORE THAN WI-FI
  Support services beyond Wi-Fi with Ruckus IoT Suite, Cloudpath security and onboarding software, SPoT Wi-Fi location engine and SCI network analytics.

Signal strength of the Ruckus M510 in different scenarios (ceiling-mounted)

***These graphics show the propagation of the signal strength within the framework of standardised attenuation values for walls and sources of interference according to the respective material properties. Deviations in signal propagation are possible depending on the building material.

In a highly competitive market, managed service providers (MSPs) are looking for new ways to differentiate their services and develop new revenue streams. One nascent market is the "mobile-wireless" segment, where new opportunities exist to complement mobile and semi-mobile public access with branded Wi-Fi that complements LTE networks. But integrating with existing LTE networks with mobile Wi-Fi hotspot services has not been easy.

The Ruckus M510 Mobile-wireless Access Point (AP) is an 802.11ac 2x2:2 Wave 2 Wi-Fi AP designed to backhaul LTE networks and connect wirelessly to any network without the need for an Ethernet cable connection.

Because of its LTE wireless backhaul capabilities, the M510 is suitable for multiple deployment scenarios that have not been served before, including in-vehicle mobile Wi-Fi ("mobile AP"), rapid Wi-Fi deployment for pop-up retailers or first responders, and temporary Wi-Fi deployment at a construction site. The M510's LTE backhaul can serve as failover or redundancy for WAN connectivity. In addition, the M510 meets an operator's requirement to provide Wi-Fi connectivity for outdoor mobile hotspots for transit hubs or isolated public locations where wired connectivity is too expensive or impossible.

The M510 AP features patented technologies found only in the Ruckus Wi-Fi portfolio.

• Extended coverage with patented BeamFlex+, which uses multi-directional antenna patterns.
• Improved throughput with ChannelFly, which dynamically finds less congested Wi-Fi channels.

In addition, the M510's built-in GPS allows customers to automatically pinpoint the exact location of any access point on a network or geographic map in real time - greatly simplifying installation, tracking and maintenance.

Whether operators are deploying tens or tens of thousands of APs, the M510 is easily managed through any physical or virtual SmartZone controller. MSPs can take advantage of SmartZone's carrier-grade features, such as resilience and geo-redundancy.

Your benefits:

• MOBILE WI-FI
  Superior performance, managed Wi-Fi without cable pulls over an LTE connection to support mobile hotspot requirements.
• CARRIER-GRADE MANAGEMENT
  The M510 with SmartZone offers carrier-grade management capabilities. MSPs can use physical or virtual SmartZone controllers to manage all APs.
• GPS ON BOARD
  GPS supports location-based services to track the mobile unit.
• WI-FI COVERAGE FOR BUSINESS
  With patented BeamFlex+™ adaptive antenna technology and multiple directional antenna patterns, a superior user experience is enabled in any environment.
• AUTOMATISING THE OPTIMUM THROUGHPUT
  The ChannelFly™ dynamic channel technology uses machine learning to automatically find the least congested channels
  ; you always get the highest throughput the band can support.
• CONNECT MORE DEVICES
  Connect more devices simultaneously with two MU-MIMO spatial streams and simultaneous dual-band 2.4/5 GHz radios, while improving the performance of non-Wave 2 devices.
• MORE THAN WI-FI
  Support services beyond Wi-Fi with Ruckus IoT Suite, Cloudpath security and onboarding software, SPoT Wi-Fi location engine and SCI network analytics.

Signal strength of the Ruckus M510 in different scenarios (ceiling-mounted)

***These graphics show the propagation of the signal strength within the framework of standardised attenuation values for walls and sources of interference according to the respective material properties. Deviations in signal propagation are possible depending on the building material.

This model is available as a pre-painted variety. Please keep this in mind when selecting a varient.

The Ruckus P300 is an outdoor point-to-point and point-to-multipoint bridge that unlocks the promise of 5 GHz 802.11ac and delivers unprecedented backhaul throughput of over 500 Mbps, enabling new business models by bridging remote locations and affordably delivering broadband services to previously inaccessible places.

Designed for harsh outdoor conditions, the P300 is perfect for service providers who want to easily extend branded broadband services, build small cell backhaul networks, offload traffic from small cell networks, deploy multimedia hotspots or offer wireless broadband services where access to the fixed network is limited.

The P300 is also ideal for hotels, schools, warehouses and other businesses that want to extend managed wireless LANs (Wifi) across remote buildings and where Ethernet cabling is not possible.

Automatic wireless bridge pairing, in addition to flexible mounting options, forgiving antenna patterns and easy-to-use targeting software, enables installers to set up and optimise a wireless connection in a short amount of time, greatly increasing productivity and reducing deployment costs.

Your benefits:

• DRAWABLE THROUGH AIR
  Based on the 802. 11ac standard, the P300 supports RF data rates of up to 867 Mbps.  With Ruckus' specially designed directional antenna, the P300 supports throughput rates of up to 500 Mbps and provides performance of up to 100 Mbps at 8 km (LoS).*
  *When used with optional external antenna
• EASY INSTALLATION AND PAIRING
  Ruckus P300 enables installers to effortlessly set up wireless bridges. It is lightweight and equipped with simple and flexible mounting options.
• EASY POSITIONING AND ALIGNMENT
  Precision targeting and optimised performance with a 30-degree beam angle antenna and advanced LED-based targeting software.  P300 automatically finds and selects the best performing channel using Ruckus' patented ChannelFly™ channel selection algorithms.
• SECURE AND SCALABLE
  The wireless bridge link is AES secure and can be scaled to support multiple networks segmented by VLANs.
• SCALABLE WITH WIRELESS MULTI-NODE BRIDGING
  Each root bridge can support up to 10 host bridges.
• UNBEATABLE PRICE PERFORMANCE
  Wireless connectivity provides significantly higher data throughput rates than T1/E1 or xDSL lines at a fraction of the cost of installing a landline and without the recurring leased line costs.   The P300 is also an ideal option for backhauling small cell mobile networks.
• ENVIRONMENTALLY FRIENDLY DESIGN
  The internal dual polarised antenna not only eliminates the need for an external antenna, further simplifying installation, but also provides an aesthetically pleasing appearance.

This model is available as a pre-painted variety. Please keep this in mind when selecting a varient.

The Ruckus P300 is an outdoor point-to-point and point-to-multipoint bridge that unlocks the promise of 5 GHz 802.11ac and delivers unprecedented backhaul throughput of over 500 Mbps, enabling new business models by bridging remote locations and affordably delivering broadband services to previously inaccessible places.

Designed for harsh outdoor conditions, the P300 is perfect for service providers who want to easily extend branded broadband services, build small cell backhaul networks, offload traffic from small cell networks, deploy multimedia hotspots or offer wireless broadband services where access to the fixed network is limited.

The P300 is also ideal for hotels, schools, warehouses and other businesses that want to extend managed wireless LANs (Wifi) across remote buildings and where Ethernet cabling is not possible.

Automatic wireless bridge pairing, in addition to flexible mounting options, forgiving antenna patterns and easy-to-use targeting software, enables installers to set up and optimise a wireless connection in a short amount of time, greatly increasing productivity and reducing deployment costs.

Your benefits:

• DRAWABLE THROUGH AIR
  Based on the 802. 11ac standard, the P300 supports RF data rates of up to 867 Mbps.  With Ruckus' specially designed directional antenna, the P300 supports throughput rates of up to 500 Mbps and provides performance of up to 100 Mbps at 8 km (LoS).*
  *When used with optional external antenna
• EASY INSTALLATION AND PAIRING
  Ruckus P300 enables installers to effortlessly set up wireless bridges. It is lightweight and equipped with simple and flexible mounting options.
• EASY POSITIONING AND ALIGNMENT
  Precision targeting and optimised performance with a 30-degree beam angle antenna and advanced LED-based targeting software.  P300 automatically finds and selects the best performing channel using Ruckus' patented ChannelFly™ channel selection algorithms.
• SECURE AND SCALABLE
  The wireless bridge link is AES secure and can be scaled to support multiple networks segmented by VLANs.
• SCALABLE WITH WIRELESS MULTI-NODE BRIDGING
  Each root bridge can support up to 10 host bridges.
• UNBEATABLE PRICE PERFORMANCE
  Wireless connectivity provides significantly higher data throughput rates than T1/E1 or xDSL lines at a fraction of the cost of installing a landline and without the recurring leased line costs.   The P300 is also an ideal option for backhauling small cell mobile networks.
• ENVIRONMENTALLY FRIENDLY DESIGN
  The internal dual polarised antenna not only eliminates the need for an external antenna, further simplifying installation, but also provides an aesthetically pleasing appearance.
